AVR Pong Game

This project recreates the game Pong by programming it directly on a ATmega328P microcontroller using C++. Doing this project was really satisfactory, as it was my first experience programming hardware. I came up with it as my final project for the subject EE 120B.

Play it here!

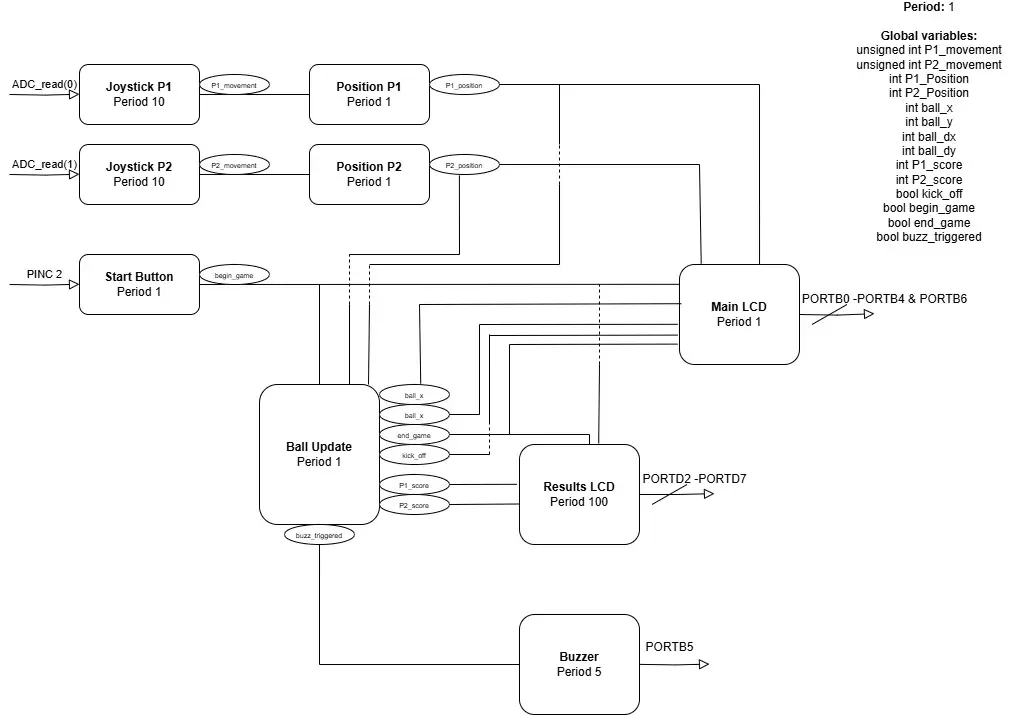

The approach was to design the logic of each component separately as a state machine and then implementing all together. The logic diagram of the final implementation was the following:

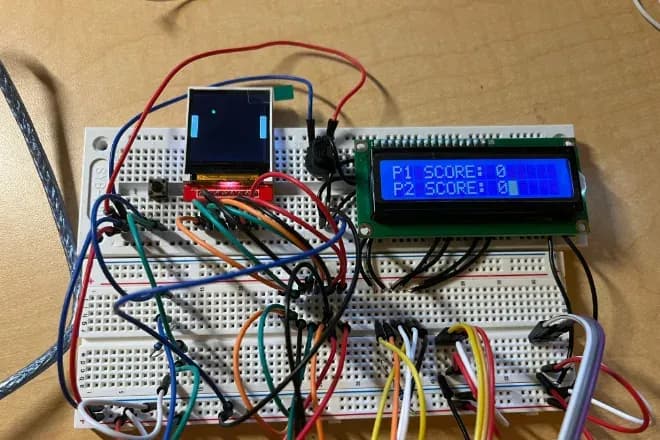

• Hardware components used

  -Arduino UNO R3 Controller Board (ATmega328P microcontroller)

  -ST7735 LCD (used as primary screen)

  -LCD 1602 (used as secondary screen)

  -x2 Joysticks

  -Button

  -Resistance 10kΩ

• Wiring Connections

  • ST7735 LCD

      CS: D10
      RESET: D9
      A0: D8
      SDA: D11
      SCK: D13
      LED: 3.3V


  • LCD 1602

      V0: potentiometer (10 - 100 kΩ)
      RS: D2
      RW: GND
      E: D3
      D4: D4
      D5: D5
      D6: D6
      D7: D7
      A: 5V
      K: GND


  • Joystick P1: A0

  • Joystick P2: A1

  • Button: A2
